Borosilicate Glass Capillary Tubes
Manufactured to the highest standards, these tubes are available from 0.1mm to 3.5mm outside diameter. Standard stocked sizes are 0.1, 0.2, 0.3, 0.5, 0.7, 1.0, 1.5, 2.0, 2.5, 3.0 and 3.5. Other sizes are available to special order.
All sizes up to and including 2.0mm are supplied in packs of 25 pieces, with 2.5mm and 3.0mm being supplied in packs of 15 pieces, and the 3.5mm size being supplies in packs of 10 pieces,

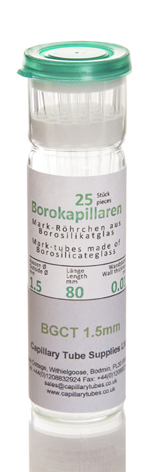

The capillary tubes are supplied in an outer glass tube, supported internally in foam.
Overall length of the tubes is approximately 80mm, with 70mm being the capillary length. The capillary length is closed at one end and the open neck end is a larger diameter to ease addition of the sample for testing.
Wall thickness is 0.01mm to minimise the diffraction through the glass
