Tube Images and Packaging

Standard Capillary Tubes

Standard Capillary Tubes

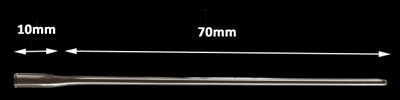

The overall length of the tubes is approximately 80mm, The capillary portion has an outside diameter which matches the part number (e.g. BGCT 1.5 = 1.5mm) and is approximately 70mm long and closed at the capillary end. The neck or funnel end is a larger diameter to allow easier addition of the product for testing and is approximately 10mm long. The wall thickness is 0.01mm, being as thin as possible to minimise diffraction through the glass.
Protective Tube

Protective Tube


Individual capillary tubes are supplied in an outer glass protective tube. This has a plastic lid, which when removed, shows a foam disc (removed in the image) which sits on top of the open end of the tubes. When this disc is removed (as per the image), the individual tubes can be seen supported in a perforated foam disc with individual tubes in each perforation.
Protective Packaging

Protective Packaging


The outer protective tubes containing the capillaries are housed in custom polystyrene moulds, forming an upper and lower layer sandwich. These moulds are then packed into cardboard cartons, infilled with polystyrene chips for shipping. For shipments of more than 100 packs, we reserve the right to double pack in cardboard cartons with foam protective layers. This is due to the very high and unacceptable shipping costs when based on volume.
Standard Tube Dimensions

Standard Tube Dimensions
